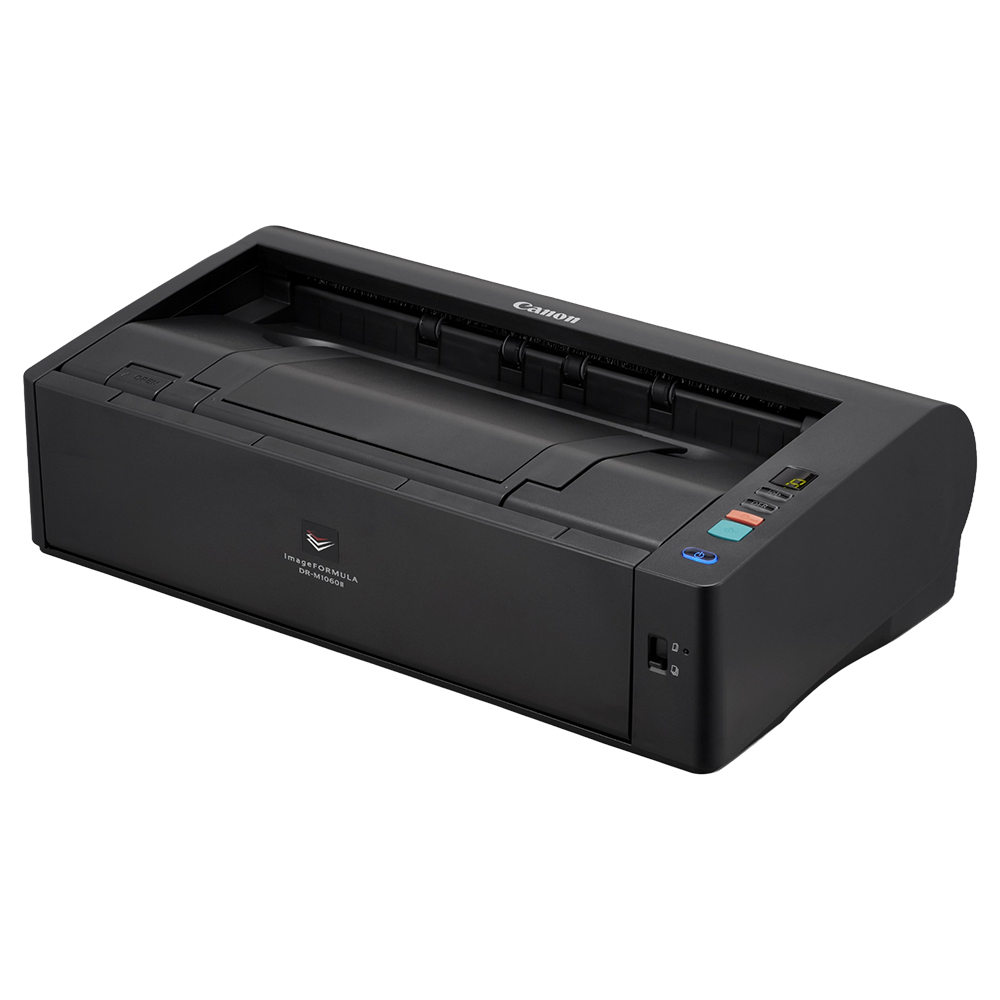

DR-M1060

The imageFORMULA DR-M1060, ultra-compact A3 scanner offering reliable and versatile performance. A versatile and ultra-compact A3 scanner with a U-turn and selectable straight-through paper path. The DR-M1060 is perfect for reliably scanning various document types up to A3 size, while keeping footprint low.

Features

The Canon imageFORMULA DR-M1060 departmental scanner is a compact scanner equipped with a U-turn path, and is the smallest scanner in its class. It is capable of scanning A3 documents despite its desktop-scanner size, making it a cost-effective answer to your diverse scanning needs.

Comfortable and versatile

Despite its compact desktop-scanner size, the DR-M1060 is capable of scanning A3 documents. Its unique U-turn path design allows documents to be fed and ejected from the front of the scanner for convenient and efficient front-side only scanning operations.
The U-turn path can be switched to a straight path for plastic cards, thick paper, and other types of documents that cannot be bent, expanding the variety of media that can be scanned.

High performance for high productivity

The DR-M1060 scanner offers a collection of invaluable image capturing and processing functions for various document types that optimize readability and minimize reprocessing.
The scanner is also equipped with advanced error detection functions that not only allow smooth recovery from errors, but also prevent damage to documents by quickly detecting abnormal document movement.
All these features are designed to optimize workflows and improve productivity, delivering a reliable, efficient, and streamlined solution to all your document digitization needs.

Selectable U-turn and straight path options

Innovative space-saving design

High-speed scanning

	Simplex (ppm)		Duplex (ipm)
	B&W	Color	B&W	Color
A4 / landscape	60	60	120	120
A4 / portrait	40	40	80	80
A3	30	30	60	60

* A4, 200dpi

Support for a wide variety of media formats

Reliable feeding performance

The DR-M1060 is the first in the DR-series to be equipped with paper speed and skew sensors adjacent to the rollers.
These sensors monitor the paper speed and skew angle as the document moves during scanning, enabling the unit to stop the document feeder immediately a problem is detected and to prevent damage to the document.

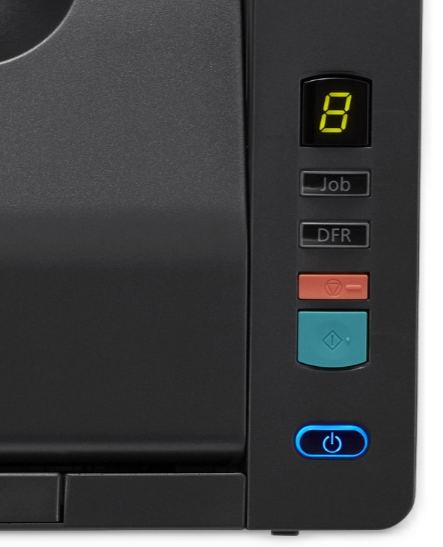

User-friendly operating panel

The operating panel for basic operations, such as starting and stopping scans, is located on the front right of the scanner. The panel includes a DFR button to allow smooth recovery from feed stops that occur due to double feed. Up to nine jobs can be registered by connecting to the bundled CaptureOnTouch software.

Functions

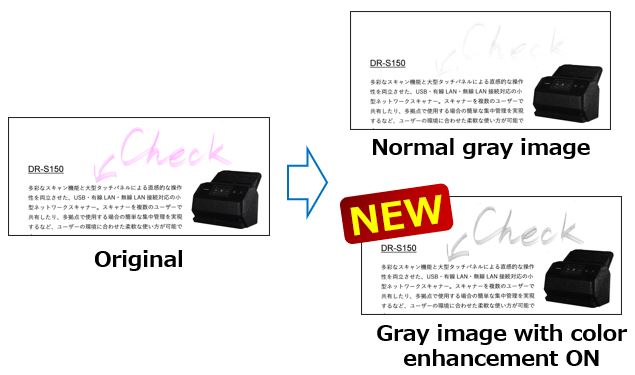

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Image processing functions page

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

CapturePerfect page
CaptureOnTouch page

Kofax VirtualReScan Basic

Kofax VirtualReScan BasicThe leading image processing software, Kofax VRS Basic, improves readability for multi-size documents of varying degrees of quality. Automatically straighten skewed pages without character degradation, optimize a document’s brightness and contrast levels, and eliminate background noise and speckling.

Specifications

Type	Desktop sheet-fed scanner
Document size	Plain paper	Width: 50.8 mm to 300 mm (2″ to 11.8″) Length: 70 mm to 432 mm (2.8″ to 17″) (You can scan documents up to 3,000 mm (118.1″) long by setting the scanner to the Long Document mode.)
	Business card	Width: 50.8 mm to 55 mm (2″ to 2.2″) Length: 85 mm to 91 mm (3.4″ to 3.6″)
	Card	54 mm x 86 mm (2.2″ x 3.4″) (ISO standard)
Document thickness and weight	Plain paper	U-turn path (page separation): 27 to 128 g/m² (0.04 mm to 0.15 mm) U-turn path (non separation): 27 to 164 g/m² (0.04 mm to 0.2 mm) Straight path: 27 to 255 g/m² (0.04 mm to 0.3 mm)
	Business card	128 to 380 g/m² (0.15 mm to 0.45 mm) (Use the straight path and place vertically.)
	Card	0.76 mm (0.03″) or less, 1.4 mm (0.055″) or less for the embossment (Use the straight path and place vertically.)
Scanning sensor	CIS
Light source	LED ( Red, Green, Blue )
Scanning side	Simplex/Duplex
Scanning modes	Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color
Scanning resolution	100 x 100dpi / 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi
Scanning speed ( A4 horizontal document size )	B&W / Grayscale	200dpi: 60 ppm (Simplex), 120 ipm (Duplex) 300dpi: 60 ppm (Simplex), 120 ipm (Duplex)
	Color	200dpi: 60 ppm (Simplex), 120 ipm (Duplex) 300dpi: 40 ppm (Simplex), 80 ipm (Duplex)
ADF capacity ( 80 g/m² paper )	A4: 60 sheets A3: 25 sheets
Interface	Hi-Speed USB 2.0
Driver / Software	ISIS/ TWAIN Driver, CaptureOnTouch, CapturePerfect, eCopy PDF Pro Office, KOFAX VRS
Other functions	Prescan, Staple detection, Addon, Double feed detection ignore
Dimensions ( W x D x H )	When trays are closed 424 mm (16.7″) × 246 mm (9.7″) × 120 mm (4.7″) When trays are opened 424 mm (16.7″) × 440 mm (17.3″) × 210 mm (8.3″)
Weight ( without AC adapter )	Approximately 6.1 kg (13.5 lb)
Power supply ( using AC adapter )	DC24V 1.3A
Power consumption	Scanning	32.5 W or less
	In the sleep mode	2.5 W or less
	With power switch OFF	0.5 W or less
Noise	Not more than 56 dB
Operating environment	Temperature: 10°C to 32.5°C (50°F to 90.5°F) Humidity: 20% to 80% RH
Options / Consumables	Exchange Roller Kit, Barcode module, 2D code module, Flatbed Scanner Unit 101/201

* Actual scanning speed may vary depending on your system configuration and PC.
* Specifications are subject to change without notice.
