Document Scanner


P-208II

P-208II

The imageFORMULA P-208II has an ultra-compact body and offers the smallest footprint in Canon’s imageFORMULA lineup. This scanner is not just for the office. Its lightweight, compact design makes it ideal for use anywhere in the home or out on the road. With a plug-and-scan feature, a 10-sheet ADF and high speed duplex scanning productivity is always maintained.

Features

It offers a full range of functions in one compact package.

This scanner is not just for the office. Its lightweight, compact design makes it ideal for use in the home or anywhere you happen to find yourself. Though mobile, it allows one-pass duplex scanning and comes equipped with ADF. What’s more, ease of use is enhanced by the new CaptureOnTouch and CaptureOnTouch Lite, which makes for even more intuitive operation.

Outstandingly portable and ADF-equipped

The P-208ll now comes equipped with ADF that can hold up to 10 documents. With its compact design, this lightweight scanner – weighing just 600g and measuring 12.30 x 2.19 x 1.57” (312.5 x 55.5 x 40mm) – is small enough to fit neatly into a bag for quick and easy use wherever you go.

Plug & Scan

There is no need to install any driver software or scanning application on your PC as the pre-installed scanning utility, CaptureOnTouch Lite, provides plug-and-scan capabilities.
Simply opening the feed t ray turns the scanner on and makes it ready to scan.

High-Quality One-Pass Duplex Scanning

Simplex (ppm) Duplex (ipm)
B&W / Grayscale Color B&W / Grayscale Color
200dpi 8 8 16 16
300dpi 8 6 16 12
*A4, Portrait

USB Powering

USB PoweringFor enhanced portability, it now comes loaded with a USB bus power drive that makes scanning possible without an AC/DC adaptor.
You can scan wherever and whenever the need arises using a single USB cable that packs away neatly when the job is done.

Functions

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

Enhanced ease of use and intelligibility

As this is preinstalled, plug-and-scan is now available without having to install any driver software. Employing the same panel-style GUI as CaptureOnTouch, CaptureOnTouch Lite offers editing capability and intuitively understands what is required. What’s more, the standard functions of CaptureOnTouch can be used in exactly the same way for a trouble-free scanning experience. Additional plug-ins can also be used to support various outputs.

Enhanced Cloud Connectivity

Connection iconsConnection to cloud-based services is now even more comprehensive. In addition to Evernote, SharePoint and Google Drive, scanning destinations have been expanded to include SugarSync, OneDrive and Dropbox.

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheet-fed scanner
Document size Plain paper Width: 50.8 to 216 mm (2 to 8.5″)
Length: 70 to 356 mm (2.76 to 14″)
Postcard Width: 88.9 to 108 mm (3.5 to 4.25″)
Length: 127 to 152.4 mm (5 to 6″)
Business card Width: 49 to 55 mm (1.93 to 2.17″)
Length: 85 to 91 mm (3.35 to 3.58″)
Card (ISO/IEC compliant) 54 mm x 86 mm (2.1 x 3.4″)
Document thickness and weight Plain paper 0.06 to 0.22 mm (0.0024 to 0.0087″)
52 to 209 g/m² (14 to 55 lb bond)
Postcard 0.15 to 0.4 mm (0.0059 to 0.0157″)
128 to 300 g/m² (34 to 80 lb bond)
Business card 0.15 to 0.45 mm (0.0059 to 0.0177″)
128 to 380 g/m² (34 to 58 lb bond)
Card (ISO/IEC compliant) 0.76 mm (0.03″) or less
Up to 1.4 mm (0.055″) for embossed cards
Document feeding method Automatic
Scanning sensor Contact image sensor
Light source LED
Scanning side Simplex/Duplex
Scanning modes Black and White, 256-level Grayscale, Advanced Text Enhancement II, 24-bit Color
Scanning resolution 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed *1 B&W/Grayscale 200 dpi/300 dpi: 8 ppm (Simplex), 16 ipm (Duplex)
Color 200 dpi: 8 ppm (Simplex), 16 ipm (Duplex)
300 dpi: 6 ppm (Simplex), 12 ipm (Duplex)
Interface Hi-Speed USB 2.0
Scanner driver/Software Windows:
ISIS/TWAIN Driver, CaptureOnTouch, CaptureOnTouch Lite (Built-in), Presto! BizCard, Evernote *2
Mac:
TWAIN Driver, CaptureOnTouch, CaptureOnTouch Lite (Built-in), Presto! BizCard, Evernote *2
Dimensions (W x D x H) Feed tray closed: 312.5 x 56.5 x 40 mm (12.3 x 2.23 x 1.57″)
Feed tray open: 312.5 x 89.5 x 40 mm (12.3 x 3.53 x 1.57″)
Weight Approximately 600 g (1.3 lb)
Power supply Supply from USB (500mA)
Power consumption Scanning 2.5 W or less
Sleep mode 1.5 W or less
Power OFF 0.1 W or less
Operating environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 25% to 80% RH
Options/Consumables WU10, Carrying Case, Separation Pad
*1 Scanning speed may vary depending on PC environment, scanner settings, and other factors.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft, Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Apple and OS X are registered trademarks of Apple Inc. in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.


P-215II

P-215II

As well as being small, and easy to operate, the feature-packed P-215II offers high-speed one-pass duplex scanning with the added convenience of a plug-and-scan function. Also, a built-in card reader is helpful for businesses who need to capture ID or business cards.

Features

Super-fast and simple to operate, the P-215II is a lightweight, compact scanner that can be used anywhere, anytime. You don’t need access to a power supply – all you need to start scanning is a USB connection.
This machine will open up all kinds of new scanning possibilities. What’s more, ease of use is enhanced by the new CaptureOnTouch and CaptureOnTouch Lite, which makes for even more intuitive operation.

COMPLETE ARRAY OF SCANNING FEATURES

Compact and Portable

This small and lightweight scanner with its slim and streamlined design is easy to carry around, giving you the freedom to scan anytime at all. And with ADF capacity of up to 20 sheets, it is also ideal for business use despite its compact size.

USB Powering

USB PoweringThe P-215ll draws power from a single USB port, eliminating the need for a dedicated power cable and reducing clutter around the scanner. The scanner will perform at the maximum scanning speed via a single cable when connected to a USB 3.0 port*.

*USB3.0 is for power supply only.

Plug & Scan

There is no need to install any driver software or scanning application on your PC as the pre-installed scanning utility, CaptureOnTouch Lite, provides plug-and-scan capabilities. Simply opening the feed tray turns the scanner on and makes it ready to scan.

High-Quality One-Pass Scanning

Simplex (ppm) Duplex (ipm)
B&W / Grayscale Color B&W / Grayscale Color
200dpi 15 10 30 20
300dpi 15 6 30 12
*A4, Portrait, When using USB 3.0, USB 2.0 bus power in combination with the powersupply USB cable, or the AC adapter (option)

Card Scanning

When a card is inserted into the slot at the front, the switchback system will automatically transport, scan and eject. This type of card scanning is particularly handy in businesses where counter service is important.

Functions

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

Enhanced ease of use and intelligibility

As this is preinstalled, plug-and-scan is now available without having to install any driver software. Employing the same panel-style GUI as CaptureOnTouch, CaptureOnTouch Lite offers editing capability and intuitively understands what is required. What’s more, the standard functions of CaptureOnTouch can be used in exactly the same way for a trouble-free scanning experience. Additional plug-ins can also be used to support various outputs.

Enhanced Cloud Connectivity

Connection iconsConnection to cloud-based services is now even more comprehensive. In addition to Evernote, SharePoint and Google Drive, scanning destinations have been expanded to include SugarSync, OneDrive and Dropbox.

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheet-fed scanner
Document size Plain paper Width: 50.8 to 216 mm (2 to 8.5″)
Length: 70 to 356 mm (2.76 to 14″)
(You can scan documents up to 1,000 mm (39.4″)
long by setting the scanner to the Long Document mode.)
Postcard Width: 88.9 to 108 mm (3.5 to 4.25″)
Length: 127 to 152.4 mm (5 to 6″)
Business card Width: 49 to 55 mm (1.93 to 2.17″)
Length: 85 to 91 mm (3.35 to 3.58″)
Card 54 x 86 mm (2.1 x 3.4″) (ISO standard)
Document thickness and weight Plain paper 0.06 to 0.15 mm (0.0024″ to 0.0059″)
52 to 128 g/m² (14 to 34 lb bond)
Postcard 0.15 to 0.3 mm (0.0059″ to 0.00118″)
128 to 255 g/m² (34 to 68 lb bond)
Business card 0.15 to 0.3 mm (0.0059″ to 0.00118″)
128 to 255 g/m² (34 to 68 lb bond)
Card 0.76 mm (0.03″) ISO7810 ID-1 compatible
Document feeding Automatic sheet feeding
Feeding capacity 3 mm stack (including curls) or 20 sheets of 64 g/m² (16 lb. bond)
Scanning element Contact image sensor
Light source LED (Red, Green, and Blue)
Scanning side Simplex/Duplex
Scanning modes Black and White, Error Diffusion, Advanced Text Enhancement II, 8bit (256-level) Grayscale, 24-bit Color
Scanning resolution 150 x 150dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed *1 (A4/LTR) When using USB 2.0 bus power B&W
/Grayscale
200 dpi/300 dpi: 12 ppm (Simplex), 14 ipm (Duplex)
Color 200 dpi: 10 ppm (Simplex), 10 ipm (Duplex)
300 dpi: 6 ppm (Simplex), 6 ipm (Duplex)
USB 2.0 x 2 / USB 3.0*2 x 1 /
USB 2.0 x 1 + AC Adapter
B&W
/Grayscale
200 dpi/300 dpi: 15 ppm (Simplex), 30 ipm (Duplex)
Color 200 dpi: 10 ppm (Simplex), 20 ipm (Duplex)
300 dpi: 6 ppm (Simplex), 12 ipm (Duplex)
Interface Hi-Speed USB 2.0 (USB 3.0 bus power also supported)
Scanner driver/Software Windows:
ISIS/TWAIN Driver, CaptureOnTouch, CaptureOnTouch Lite(Built-in)
Mac:
TWAIN Driver, CaptureOnTouch, CaptureOnTouch Lite (Built-in)
Dimensions (W x D x H) Feed tray closed: 285 x 95 x 40 mm (11.2 x 3.8 x 1.6″)
Feed tray open: 285 x 257 x 174 mm (11.2 x 10.1 x 6.9″)
Weight Approx. 1.0 kg (2.2 lbs)
Power supply With USB 2.0 bus power 0.5 A (communication cable only),
1.0 A (in combination with the power supply USB cable)
With USB 3.0 *2 bus power 0.9 A
With optional AC Adapter DC6V, 0.8 A
Power consumption USB cable only 2.5 W (USB 2.0), 4.5 W (USB 3.0 *2) or less
USB cable and power supply USB cable 5.0 W (USB 2.0), 7.0 W (USB 3.0 *2) or less
Sleep mode 1.5 W or less
Power OFF 0.1 W or less
Operating environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 25% to 80% RH
Options/Consumables AC Adapter, Carrying Case, USB Cable, Separation Pad, Feed Roller
*1 Scanning speed may vary depending on PC environment, scanner settings, and other factors.
*2 The supplied USB cable is designed specifically for this scanner. Do not use it with any other device.
Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft, Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Apple and OS X are registered trademarks of Apple Inc. in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.


DR-F120

DR-F120

The imageFORMULA DR-F120, featuring an integrated automatic document feeder and flatbed unit, is your one-stop scanning solution. Various document types such as folded originals, old and damaged originals, and books can be processed by this scanner. By processing different types of originals at once, the efficiency of your work can be greatly improved.

Features

High performance for high productivity

Various document types such as folded originals, old and damaged originals, and books can be processed by this scanner. By processing different types of originals at once, the efficiency of your work will be greatly improved.

High-speed scanning

The DR-F120 has a one-pass duplex scanning sensor which enables it to scan at high speeds.

B&W Grayscale Color
Simplex (ppm) Duplex (ipm) Simplex (ppm) Duplex (ipm) Simplex (ppm) Duplex (ipm)
200dpi 20 36 20 36 10 18
300dpi 20 36 20 36 6 12
600dpi 5 9 5 9 1.6 3
* A4, Portrait

Stylish, sturdy, slim body

The stylish body of the DR-F120 will fit in perfectly in any office, and it is also sturdy and compact enough to sit comfortably on your desktop. It is designed to stay on top of high-volume scanning needs in a variety of business settings.

User-friendly operation panel

Start and stop scanning and perform other operations away from your computer with the operating panel.

High-volume ADF

The heavy-duty Auto Document Feeder can hold up to 50 sheets. It can also scan several documents at once even if various sized originals are mixed. Furthermore, like higher end models, it has retard rollers to separate each sheet of paper.

Supports various originals

The flatbed scanner supports LGL paper, which is slightly larger than A4 paper. This enables the scanner to scan a larger variety of paper.

Support for a wide variety of media formats

Functions

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Specifications
Type Desktop ADF / flatbed scanner
Scanning Document Size Feeder Width : 51 mm to 216 mm (2″ to 8.5″)
Length : 89 mm to 356 mm (3.5″ to 14.0″)
Thickness : 35 to 128g/m² (9 to 32 lb bond)
Capacity (80g/m² paper) : 50 sheets or stacked to a height of 6.0 mm (0.2″) (including curling)
Flatbed Width : 216 mm (8.5″)
Length : 356 mm (14.0″)
Scanning sensor CIS
Light source LED (Red, Green, Blue)
Scanning side Simplex/Duplex
Scanning modes Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color
Scanning resolution *1 100 x 100dpi / 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi / 1200 x 1200dpi / 2400 x 2400dpi
Maximum scanning speed *2 20 ppm/36 ipm
ADF capacity
(80 g/m² paper)
50 sheets
Interface Hi-Speed USB 2.0
Dimensions (W x D x H) 469 mm (18.5″) x 335 mm (13.2″) x 120 mm (4.8″)
Weight
(without AC adapter)
Approximately 4.6 kg (10.1 lb)
Power supply
(using AC adapter)
DC 24V 2.0A
Power consumption Scanning 19.9 W or less
In the sleep mode 2.5 W or less
With power switch OFF 0.5 W or less
Noise 46 dB or less
Operating environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 20% to 80% RH
Consumables Exchange Roller Kit
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft, Windows and SharePoint are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.


DR-C225 II / C225W II

DR-C225 II / C225W II

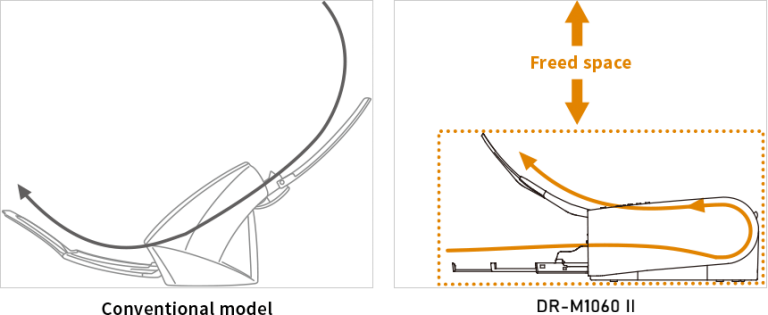

With the use of a U-turn path, there is no need to leave a space in front of the scanner for document delivery, resulting in a neat, slim body for space-saving operation. In addition, the DR-C225W II wireless model gives you even more freedom in installation. As well as allowing high-speed scanning of 25 ppm* in either color or back and white, the document feed can handle many different types of documents. And the new CaptureOnTouch makes easy work of day-to-day scanning tasks. *A4, Portrait, 200dpi (simplex).

Features

A slim body that saves space

Once a document is fed in, it follows a U-turn path and is discharged at the front section of the main unit. This eliminates the need to leave space in front for document delivery and results in outstanding space-saving. Also, switching to straight ejection path makes it possible to scan cards and other thick documents.

Natural and intuitive feeding

With the DR-C225 II / DR-C225W II, documents for scanning are fed face up and in a natural orientation that reduces document loading mistakes.

High-speed scanning in a compact package

Simplex (ppm) Duplex (ipm)
B&W / Grayscale Color B&W / Grayscale Color
200dpi 25 25 50 50
300dpi 25 15 50 30
*A4, Portrait

The wireless model further expands the range of possibilities.

The DR-C225W II comes equipped with Wi-Fi connectivity, so a number of compatible devices such as PCs, smartphones and tablets can share a scanner without the need for USB cables. The DR-C225W II offers a new style of scanning that utilizes the scan data across multiple devices.

Connecting via wireless access point (Station mode)

This mode connects the scanner to PCs, smartphones, and tablets via a wireless access point, and allows you to share the scanner among multiple devices. Using a WPS-compatible access point makes the network configuration process that is required for using this mode quick and easy.

1-to-1 connection (Access Point mode)

The scanner connects to PCs, smartphones, and tablets on a 1-to-1 basis in this mode. Detection of the scanner and connections are performed from the other device, allowing you to scan images with your smart devices.

Functions

Reliable document feeding

As documents are fed in, the upper sensor transmits ultrasonic waves that are received by the lower sensor. If multiple feeding should occur, document feeding is automatically halted and a double feed is indicated, so there is no risk of data loss during scanning.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

Enhanced ease of use and intelligibility

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheet-fed scanner
Document size Plain paper U-turn path
Width: 50.8 to 216 mm (2″ to 8.5″) Length: 70 to 356 mm (2.76″ to 14″)
Straight path
Width: 50.8 to 216 mm (2″ to 8.5″) Length: 53.9 to 356 mm (2.12″ to 14″)
Use Long Document mode to scan documents up to 3,000 mm (118.1″) long.
Business card 50 x 53.9 mm (1.97″ x 2.12″) or larger
Vertical feeding on
Plastic card 53.9 x 85.5 mm (2.12″ x 3.37″) (ISO standard)
Embossed cards can be scanned.
Document thickness Plain paper U-turn path
52 to 128 g/m² (0.06 to 0.15 mm)
Straight path
40 to 209 g/m² (0.05 to 0.25 mm)
Business card 300 g/m² (140 lb bond) 0.35 mm (0.0138″) or less
Plastic card 0.76 mm (0.03″) or less
Document feeding Automatic sheet feeding
Feeding capacity 6 mm stack (including curls) or 30 sheets of 80g/m² (20 Ib bond)
Scanning element CIS
Light source LED (red, green, and blue)
Scanning side Simplex / Duplex
Scanning modes Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II (for Windows only), 256-level grayscale, 24-bit color
Scanning resolution 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed *1
(A4/LTR, portrait, 200 dpi)
Simplex: 25 ppm
Duplex: 50 ipm
Interface Hi-speed USB 2.0
Software Windows:
ISIS/TWAIN driver, CaptureOnTouch
( DR-C225W Ⅱ only : Wireless connection Setup Tool, NetoworkMonitor )
Mac:
TWAIN driver, CaptureOnTouch
( DR-C225W Ⅱ only : Wireless connection Setup Tool, NetoworkMonitor )
Dimensions (W x D x H) 300 mm (11.81″) x 220 mm (8.66″) x 156 mm (6.14″) with the feed tray closed
Weight DR-C225 Ⅱ: Approx. 2.7 kg, DR-C225W Ⅱ: Approx. 2.8 kg
Power requirements AC100 to 240 V (50/60Hz)
Power consumption DR-C225 Ⅱ Scanning: 12.7 W or less (120V) 12.8 W or less (200V),
Sleep: 1.7 W or less (120V) 1.8 W or less (200V), OFF: 0.5 W or less
DR-C225W Ⅱ Scanning: 15.6 W or less
Sleep: 4.3 W or less (120V) 4.4 W or less (200V)
OFF: 0.5 W or less
Operating environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 20% to 80%
Options/Consumables Flatbed Scanner Unit 101/201(DR-C225 Ⅱ only)
Exchange Roller Kit (feed roller and retard roller)

DR-C225W Ⅱ Specifications

Basic wireless LAN
specifications
Wireless standard IEEE802.11b/g/n (2.4 GHz only)
Data rate *3 IEEE802.11b: Up to 11 Mbps
IEEE802.11g: Up to 54 Mbps
IEEE802.11n: Up to 300 Mbps
Security WPA-PSK(TKIP/AES)
WPA2-PSK(TKIP/AES)
WEP(64/128bit)
Easy setting WPS
Connection modes Access Point mode, Station mode
*1 Actual scanning speed may vary depending on your system configuration and PC.
*2 Installed via Internet connection.
*3 Varies according to environmental conditions.
Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or
registered trademarks in other countries. imageFORMULA is a trademark of CANON ELECTRONICS INC. Microsoft, Windows and SharePoint are registered trademarks of Microsoft Corporation in the United States and other countries.
Apple and OS X are registered trademarks of Apple Inc. in the United States and other countries.
Wi-Fi, Wi-Fi Alliance, the Wi-Fi CERTIFIED logo and the Wi-Fi Protected Setup logo are registered trademarks of the Wi-Fi Alliance.
Wi-Fi CERTIFIED and the Wi-Fi Protected Setup are trademarks of the Wi-Fi Alliance. Evernote is trademark or registered trademarks of Evernote Corporation. Other product and company names herein may be the trademarks of their respective owners.
ENERGY STAR and the ENERGY STAR mark are registered U.S. trademarks.


DR-C240 / C230

DR-C240 / C230

The DR-C240/C230 are high-speed scanning solution with a feeder which can hold a maximum of 60 sheets of paper. This powerful scanner can load different sized documents simultaneously and process various types of original, including thin paper, postcards, and even passports. It is suitable for scanning a huge number of documents quickly and helping you work more effectively.

Features

COMFORTABLE HIGH-PERFORMANCE SCANNING

Passport scanning

You can easily scan your passport by loading it into the optional Carrier Sheet (Passport). This compact scanner can be very useful for a number of different jobs, such as receptionist.

Supports various originals

This scanner processes various types, sizes, and weights of document.

* To scan a passport, the optional Carrier Sheet (Passport) is needed.
* A Folded A3 or A2 sized document can be also processed.

High-capacity ADF

The heavy-duty Auto Document Feeder can hold up to 60 sheets of paper (80g/m²). This scanner can scan several documents at the same time, even if different sized documents are mixed.
This gives the scanner fantastic usability, and helps it efficiently support your work.

Stylish, sturdy, slim body

The stylish body of the DR-C240/C203 will perfectly fit any offices, and it is sturdy and compact enough to sit comfortably on your desk top. It is designed to stay on top of high-volume scanning needs in a variety of business settings.

High-speed scanning

One-pass duplex scanning allows efficient scanning of large volumes of documents.

DR-C240 (A4 Portrait)

Simplex (ppm) Duplex (ipm)
B&W / Grayscale Color B&W / Grayscale Color
200 dpi 45 30 90 60
300 dpi 45 20 90 40

DR-C230 (A4 Portrait)

Simplex (ppm) Duplex (ipm)
B&W / Grayscale Color B&W / Grayscale Color
200 dpi 30 30 60 60
300 dpi 30 20 60 40
Functions

SUPERIOR PRODUCTIVITY
SUPPORTED BY SOLID TECHNOLOGY

 User-friendly operation panel

Start and stop scanning and perform other operations away from your computer with the operating panel.

Double Feed Release functions

If a double feed is detected, the Retry and DFR (Double Feed Release) functions allow scanning to resume. To resume the detected job, select the DFR in the confirmation dialogue on the screen or press the DFR button on the main unit. These functions can help to reduce the downtime during scanning.

* DFR is only available in Continuous Scanning mode and if Double Feed Detection is set up.

Batch separation using blank sheets

Insert a blank sheet that will be recognized as a batch separator to automatically separate files.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Specifications

DR-C240/C230 Specifications

Type Desktop sheet-fed scanner
Document size Plain paper Width : 50.8 mm to 216 mm (2″ to 8.5″)
Length : 54 mm to 356 mm (2.1″ to 14″)
*You can scan documents up to 3,000 mm (118.1″) long by setting the scanner to the Long Document mode.
Business card 50.8 mm x 85 mm (2″ x 3.35″) or larger
Card 54 mm x 86 mm (2.12″ x 3.37″) (ISO standard)
Passport Size : 88 mm x 125 mm (3.464″ x 4.921″) (ISO standard)
*When scanning, be sure to open the passport and insert it in the provided carrier sheet beforehand.
Document thickness and weight Plain paper Page separation :
0.04 mm to 0.25 mm (0.00157″ to 0.00984″)
27 to 209 g/m² (7 to 56 lb bond)
Bypass :
0.04 mm to 0.3 mm (0.00157″ to 0.0118″)
27 to 255 g/m² (7 to 68 lb bond)
Business card 380 g/m² (80 lb bond) 0.45 mm (0.0177″) or less
Card 0.76 mm (0.03″) or less
Up to 1.4 mm (0.055″) for embossed cards
Passport 4 mm (0.157″) or less (including carrier sheet)
Document feeding method Automatic
Scanning sensor Contact image sensor
Light source LED
Scanning side Simplex / Duplex
Scanning modes Black and White, 256-level Grayscale, 24-bit Color, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II
Scanning resolution 100 x 100 dpi / 150 x 150 dpi / 200 x 200 dpi / 240 x 240 dpi / 300 x 300 dpi / 400 x 400 dpi / 600 x 600 dpi
Scanning speed* B&W / Grayscale DR-C240 200 dpi/300 dpi: 45 ppm (Simplex), 90 ipm (Duplex)
DR-C230 200 dpi/300 dpi: 30 ppm (Simplex), 60 ipm (Duplex)
Color 200 dpi : 30 ppm (Simplex), 60 ipm (Duplex)
300 dpi : 20 ppm (Simplex), 40 ipm (Duplex)
Interface Hi-Speed USB 2.0
Scanner driver / Software ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, Kofax VirtualReScan Basic
Other functions Folio scanning, Double feed release, DFR
Dimensions
( W x D x H )
With the trays closed
291 mm (11.46″) x 253 mm (9.96″) x 231 mm (9.09″)
With the trays open
291 mm (11.46″) x 603 mm (23.74″) x 363 mm (14.29″)
Weight
( without AC adapter )
Approximately 2.8kg (6.17 lb)
Power supply
( using AC adapter )
DC24V 1.0A
Power consumption Scanning 19W or less
In the sleep mode 1.4W or less
With power switch OFF 0.1W or less
Operating environment Temperature : 10°C to 32.5°C (50°F to 90.5°F)
Humidity : 20% to 80% RH
Options / Consumables Flatbed Scanner Unit 102/201, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4 size)
* Actual scanning speed may vary depending on your system configuration and PC.
* Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.

DR-M140

DR-M140

The Canon imageFORMULA DR-M140 document scanner is a compact and versatile solution to help reduce paperwork and improve workflows. With an out-of-the-box design, reliable handling, and advanced image quality functions, the DR-M140 is a performance-driven device that provides the basis for an intelligent document capture system.

Features

Use the U-turn document path and control panel to conveniently perform all operations necessary for basic scanning tasks from the front of the scanner.
Switch to the straight path to scan embossed cards and delicate documents. The DR-M140 delivers outstanding user-friendliness and versatility in a remarkably compact body.

Fast, High-Quality Scanning

Rapid scanning

An improved CMOS contact image sensor unit enables the DR-M140’s fast 40 ppm / 80 ipm scanning. Color documents can be scanned just as quickly as in B&W, and double-sided documents are scanned in one pass.

Simplex Duplex
B/W,Grayscale Color B/W,Grayscale Color
200dpi 40 40 80 80
300dpi 40 40 80 80

Small But Versatile

U-turn/straight path options

Feed and eject documents using only the space in front of the scanner with the U-turn path, or use the straight path to scan cards, thick documents, and other documents sensitive to bending. Switching between the document paths based on document type is quick and easy.

Compact and user friendly

The scanner’s compact body saves valuable desk space and fits easily on countertops and other narrow spaces.
Full front side operability, including the ability to feed and eject documents from the front of the scanner, offers the ultimate in user-friendly scanning.

Card scanning

You can scan plain plastic cards and embossed cards* (e.g., credit cards) alike, and even scan mixed document batches that contain both cards and paper documents.

* Up to three plain cards can be scanned at one time. Embossed cards must be scanned one at a time.

Functions

Reliable document feeding

Canon’s reliable page separation mechanism provides smooth feeding of a wide variety of document sizes and weights.

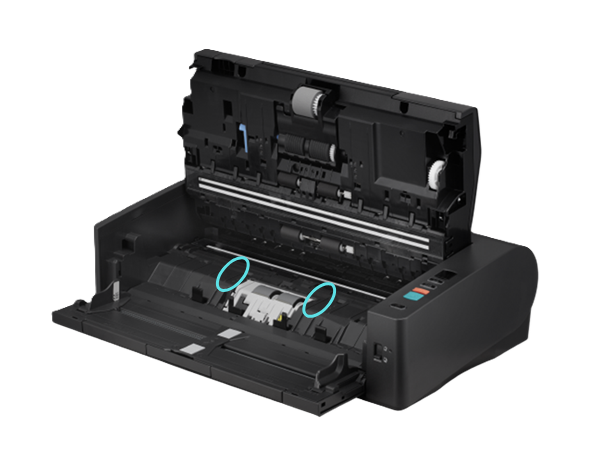

Features such as Ultrasonic Double Feed Detection and Rapid Recovery further ensure dependability by making sure each and every page of a batch is scanned.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Kofax VirtualReScan Basic

Kofax VirtualReScan BasicThe leading image processing software, Kofax VRS Basic, improves readability for multi-size documents of varying degrees of quality. Automatically straighten skewed pages without character degradation, optimize a document’s brightness and contrast levels, and eliminate background noise and speckling.

Specifications
Type Desktop sheetfed scanner
Scanning document size Plain paper Width: 50.8 mm to 216 mm (2″ to 8.5″)
Length: 54 mm to 356 mm (2.12″ to 14″)
Business card 50.8 mm x 85 mm (2.00″ x 3.35″) or larger
Card 54 mm x 86 mm (2.12″ x 3.37″) (ISO standard)
Long document Up to 3,000 mm (118.1″) long
(up to 2,700 mm (106.3″) on 600dpi)
Scanning document thickness Plain paper Straight path: 27 to 255 g/m2 (7 to 68 lb bond)
0.04 mm to 0.3 mm (0.00157″ to 0.0118″)
U-turn path: 27 to 128 g/m2 (7 to 34 lb bond)
0.04 mm to 0.15 mm (0.00157″ to 0.0075″)
Business card 128 g/m2 to 380 g/m2 (34 to 80 lb bond) ,
0.15 mm to 0.45 mm (0.0075″ to 0.0177″)
Orientation: Vertical feeding only
Card 0.76 mm (0.03″) or less
(1.4 mm (0.55″) or less for embossed cards)
Eject method: Straight path only
Orientation: Vertical or horizontal feeding
(only vertical for embossed cards)
Loading capacity: 3 cards (non-embossed), 1 cards (embossed)
Feeding capacity Up to 50 sheets of 80 g/m2 or 10 mm stack (including curls)
Scanning sensor Contact image sensor
Light source LED
Scanning side Simplex/duplex
Scanning modes Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color
Scanning resolution 150 x 150dpi/200 x 200dpi/300 x 300dpi/400 x 400dpi/600 x 600dpi
Scanning speed 1) B&W, Grayscale Simplex: 200dpi 40 pages/min.
300dpi 40 pages/min.
Duplex: 200dpi 80 images/min.
300dpi 80 images/min.
24-bit color Simplex: 200dpi 40 pages/min.
300dpi 40 pages/min.
Duplex: 200dpi 80 images/min.
300dpi 80 images/min.
Interface Hi-Speed USB 2.0
Other functions Folio scanning, Ultrasonic double feed detection, Double feed Release
External dimensions with trays closed (W x D x H) 313 mm (12.32″) (W) x 181 mm (7.13″) (D) x 93 mm (3.66″) (H)
Weight
(without AC adapter)
Approximately 2.6 kg (5.51 lb)
Power requirements AC100 to 240 V (50/60Hz)
Power consumption Scanning: maximum 25 W
In the sleep mode: maximum 1.9 W
With power switch OFF: maximum 0.5 W
Noise Not more than 56 dB
Operating environment Temperature: 10°C to 32.5°C (50°F to 90.5°F), Humidity: 20% to 80%
1. Actual scanning speed may vary depending on your system configuration and PC.
Specifications are subject to change without notice.
Microsoft, Windows, Windows Vista, PowerPoint and SharePoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.
Other company names and product names appearing in this brochure are the registered trademarks and/or trademarks of their respective owners.


DR-M160Ⅱ

DR-M160Ⅱ

With its highly reliable feeding mechanism and robust body, the imageFORMULA DR-M160II delivers high-speed one-pass duplex scanning at 60ppm/120ipm in both color and black & white. The high-capacity ADF ensures that it can make quick work of a large volume of documents. In short, this is an extremely versatile desktop scanner.

Features

With its highly reliable feeding mechanism and robust body, the DR-M160II delivers high-speed one-pass duplex scanning at 60ppm/120ipm in both color and black & white.
The high-capacity ADF ensures that it can make quick work of a large volume of documents.
In short, this is an extremely versatile desktop scanner.

Comfortable high-performance scanning

Sturdy, compact, durable body

Inside the sturdy body, which is compact enough to sit comfortably on your desktop, the moving parts of the feed path, tray and upper unit have been rendered even more durable. It’s designed to stay on top of high-volume scanning needs in a variety of business settings.

Super-fast scanning

High-speed one-pass duplex scanning at 60ppm /120ipm allows efficient scanning of large volumes of documents. Highly reliable document handling is assured by means of a high-performance feed roller. It can handle all kinds of input from thick or thin documents to multi-sheet forms, checks, embossed cards, and even A3/11″ x 17″ folio.

Simplex (ppm) Duplex (ipm)
B&W / Grayscale Color B&W / Grayscale Color
200dpi 60 60 120 120
300dpi 60 50 120 100
* Windows, A4, Portrait

High-volume ADF

The heavy-duty Auto Document Feeder can hold up to 60 sheets.

Windows and Mac compatibility

Scanner drivers and CaptureOnTouch for both Windows and Mac OS environments are provided, with the same functionality available on both platforms.

Functions

Reliable feeding mechanism supported by solid technology

Reliable document feeding

Canon’s reliable page separation mechanism provides smooth feeding of a wide variety of document sizes and weights. The DR-M160ll also uses a new feed roller for even better paper feeding. Features such as Ultrasonic Double Feed Detection and Rapid Recovery further ensure dependability by making sure each and every page of a batch is scanned.

If a double feed is detected, the Retry and DFR functions allow scanning to resume.

If a double feed is detected at the feeder inlet, engaging the Retry Function automatically reverses the path of the document so that it can be fed again and rescanned. Also, if a document has something like a photo or a tag stuck to it, scanning can be resumed either by selecting the DFR (Double Feed Release) in the double feed confirmation dialogue on the screen, or by pressing the DFR button on the main unit to indicate that it is not a case of double feed.

* DFR is only available in Continuous Scanning mode and if Double Feed Detection is set up.

User-friendly operation panel

Start and stop scanning and perform other operations away from your computer with the operating panel.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheet-fed scanner
Document size Plain paper Width : 50.8 mm to 216 mm (2″ to 8.5″)
Length : 54 mm to 356 mm (2.1″ to 14″)
*You can scan documents up to 3,000 mm (118.1″) long by setting the scanner to the Long Document mode.
Business card 50.8 mm x 85 mm (2″ x 3.35″) or larger
Card 54 mm x 86 mm (2.12″ x 3.37″) (ISO standard)
Passport Size : 88 mm x 125 mm (3.464″ x 4.921″) (ISO standard)
*When scanning, be sure to open the passport and insert it in the provided carrier sheet beforehand.
Document thickness and weight Plain paper Page separation :
0.04 mm to 0.25 mm (0.00157″ to 0.00984″)
27 to 209 g/m² (7 to 56 lb bond)
Bypass :
0.04 mm to 0.3 mm (0.00157″ to 0.0118″)
27 to 255 g/m² (7 to 68 lb bond)
Business card 380 g/m² (80 lb bond) 0.45 mm (0.0177″) or less
Card 0.76 mm (0.03″) or less
Up to 1.4 mm (0.055″) for embossed cards
Passport 4 mm (0.157″) or less (including carrier sheet)
Document feeding method Automatic
Scanning sensor Contact image sensor
Light source LED
Scanning side Simplex / Duplex
Scanning modes Black and White, 256-level Grayscale, 24-bit Color, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II
Scanning resolution 100 x 100 dpi / 150 x 150 dpi / 200 x 200 dpi / 240 x 240 dpi / 300 x 300 dpi / 400 x 400 dpi / 600 x 600 dpi
Scanning speed* B&W / Grayscale 200 dpi/300 dpi : 45 ppm (Simplex), 90 ipm (Duplex)
Color 200 dpi : 30 ppm (Simplex), 60 ipm (Duplex)
300 dpi : 20 ppm (Simplex), 40 ipm (Duplex)
Interface Hi-Speed USB 2.0
Scanner driver / Software ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, Kofax VirtualReScan Basic
Other functions Folio scanning, Double feed release, DFR
Dimensions
( W x D x H )
With the trays closed
291 mm (11.46″) x 253 mm (9.96″) x 231 mm (9.09″)
With the trays open
291 mm (11.46″) x 603 mm (23.74″) x 363 mm (14.29″)
Weight
( without AC adapter )
Approximately 2.8kg (6.17 lb)
Power supply
( using AC adapter )
DC24V 1.0A
Power consumption Scanning 19W or less
In the sleep mode 1.4W or less
With power switch OFF 0.1W or less
Operating environment Temperature : 10°C to 32.5°C (50°F to 90.5°F)
Humidity : 20% to 80% RH
Options / Consumables Flatbed Scanner Unit 101/201, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet
*1 Actual scanning speed may vary depending on your system configuration and PC.
Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc.
in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft, Windows and SharePoint are registered trademarks of Microsoft Corporation in the United States and other countries.
Apple and OS X are registered trademarks of Apple Inc. in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.


DR-M260

DR-M260

DR-M260 supports a variety of documents, from business cards to thin documents such as order forms and delivery statements, in addition to the standard document commonly used in business. A productivity will be significantly improved by the combination of high-speed scanning and versatile paper feeding power.

Features

DR-M260 supports a variety of documents, from business cards to thin documents such as order forms and delivery statements, in addition to the standard document commonly used in business. With the Auto Document Feeder’s ability to scan your documents in bulk, there is no need to divide your documents by type or size. A productivity will be significantly improved by the combination of high-speed scanning and versatile paper feeding power.

Equipped with the DR Processor,
a newly developed image processing engine

The scanner mounts a new image processing engine, the DR Processor, which is equipped with a high-speed CPU. This makes fast, high-quality scanning possible without depending on the performance of your PC. It also makes support possible for the newest interfaces such as USB3.1 Gen1.
The DR Processor reduces uneven coloring, allowing documents to be scanned as images that are more suitable for OCR (Optical Character Recognition).

High-speed scanning

Whether color, gray, or black and white, up to 120 sides (60 two-sided documents, 200 dpi, A4 portrait) per minute can be scanned in a fast, one-pass operation. The heavy-duty Auto Document Feeder can hold up to 80 sheets of paper.

Easily scan various types of documents

All kinds of documents from thin receipts to thick card and licenses can be scanned. Further-more, by using the carrier sheet, even passports with IC chips can be scanned through the Auto Document Feeder. The scanner supports a vast range of applications.
Large documents are also supported. For example, an A3/11”*17” document can be folded in half, scanned, and then combined into one image. Documents of up to 5,588mm (220”) in length can be scanned. (200dpi)

* To scan a passport, the optional Carrier Sheet (Passport) is needed.
* A Folded A3 sized document can be also processed.

Quiet operation

Noise is kept less than the previous model, thanks to the improvements of incorporated mechanical components. Comfortable user environment is realized.

iWEMC support

The scanner supports iWEMC, which allows you to manage the scanner through a network, reducing IT department costs.

Functions

User-friendly LCD Panel

Scanning status and count can be easily checked on LCD panel. Up to 99 jobs can be registered by combining commonly used scanning modes and output destinations. Select a job from the LCD panel and execute with just a single click.
Errors and roller replacement notification appear on the LCD panel, enabling an administrator to respond quickly to any problems.

Supreme paper-handling reliability

The scanner prevents skewed feeding when different size of documents are fed together, with the help of left and right feeding rollers that revolve independently.
Paper jam will be detected by two types of sensors which prevent your important documents from being damaged.
Paper feeding error detection sensors quickly detect skewed documents and paper jam. Paper eject sensor prevents from damaging documents by detecting unusual length of document transit time.

Flexible double feed support

Scanning errors are prevented when feeding multiple documents, allowing for more speedy continuous scanning.
The scanner detects with ultrasonic detection when multiple overlapping documents pass through the scanner simultaneously, after which feeding stops automatically. Furthermore, the scanner has a “Separation Retry” function that automatically returns these documents to the feed tray.
It is also possible to disable double feed detection when scanning documents that consist of more than one layer, such as copy slips. When double feeding is detected, an error will be displayed on the LCD panel. Select “Save and continue” and then press “OK” button to continue scanning.

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Driver Setting tool

This tool makes it easy for the PC administrator to customize settings of the driver and the scanner. Also a productivity of system administrator will be significantly improved since it allows to check the status of the product and configure maintenance setting.

Other Software

Kofax VirtualReScan Basic

Leading image processing software, Kofax VAS Basic, Improves readability of multiple-size documents with varying degrees of quality. Automatically straighten skewed pages without character degradation, optimize a document’s brightness/contrast levels, and eliminate background noise and speckling.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Specifications
Type Desktop sheet-fed scanner
Document size Plain paper Width : 50 mm to 216 mm (1.97″ to 8.5″)
Length : 54 mm to 356 mm (2.13″ to 14.02″)
*You can scan documents up to 5,588 mm (220″) long by setting the scanner to the Long Document mode
Business card 50 mm x 85 mm (1.97″ x 3.35″) or larger
Card 54 mm x 86 mm (2.13″ x 3.39″) (ISO standard)
Passport 88 mm x 125 mm (3.46″ x 4 92″) (ISO standard) When scanning, be sure to open the passport and insert it in the separately sold carrier sheet (for passports)
Document thickness and weight Plain paper Page separation :
0.04 mm to 0.49 mm (0.0016″ to 0.0193″)
27 to 413 g/m² (7 to 110 lb bond)
Non separation :
0.04 mm to 0.49 mm (0.0016″ to 0.0193″)
27 to 413 g/m² (7 to 110 lb bond)
*A4 size or smaller : 80 sheets (80g/m² (22 lb bond))
Larger than A4 size : 65 sheets (80g/m² (22 lb bond))
Make sure stacks do not exceed 10 mm in height for either of the above
Business card 380 g/m² (80 lb bond) 0.45 mm (0.0177″) or smaller
Card 1.4 mm (0.055″) or smaller
Passport 6 mm (0.24″) or less (including carrier sheet)
Document feeding method Automatic
Scanning sensor Contact image sensor
Light source LED
Scanning side Simplex / Duplex
Scanning modes Black and White, Error Diffusion , 256- level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color
Scanning resolution 100 X 100 dpi/150 X 150 dpi/200 X 200 dpi/240 X 240 dpi/300 X 300 dpi/400 X 400 dpi/600 X 600 dpi
Scanning speed* B&W / Grayscale 200 dpi/300 dpi : 60 ppm (Simplex), 120 ipm (Duplex)
Color 200 dpi : 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi : 50 ppm (Simplex), 100 ipm (Duplex)
Interface USB3.1 Gen1
Scanner driver / Software ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, Kofax VirtualReScan Basic
Other functions Folio scanning, Ultrasonic double feed detection, Separation retry
Dimensions
( W x D x H )
With the trays closed
285 mm (11.22″)(W) x 254 mm (10″)(D) x 231 mm (9.09″)(H)
With the trays open
285 mm (11.22″)(W) x 652 mm (25 67″)(D) x 367 mm (14.45″)(H)
Weight
( without AC adapter )
Approximately 3.4 kg (7.50 lb)
Power supply
( using AC adapter )
DC24V 1.0A
Power consumption Scanning Maximum 23W or less
In the sleep mode Maximum 1.4W or less
With power switch OFF Maximum 0.1W or less
Operating environment Temperature : 10°C to 35°C (50°F to 95°F)
Humidity : 20% to 80% RH
Options / Consumables Flatbed Scanner Unit 102/201, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4)
* Actual scanning speed may vary depending on your system configuration and PC.
* Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.


DR-6010C

DR-6010C

DR-6010C can scan documents in color just as quickly as in black & white - at a fast 60 pages per minute (200dpi, A4/LTR, Portrait). The default U-turn paper path handles batch scanning at high speeds, while a straight paper path provides the flexibility to scan plastic cards, fragile and thick documents. And the DR-6010C features many efficiency-boosting image processing functions such as Automatic Page Size Detection, Skip Blank Page, Deskew, Automatic Color Detection, Moire Reduction, Text Orientation recognition.

Features

Fast and Efficient Document Handling

Despite being small enough to fit on a desktop, the Canon DR-6010C is capable of meeting all busy office requirements for document scanning quickly and effectively. The innovative design and cutting-edge technology expertly accommodate a wide variety of document sizes and types, converting with ease stacks of papers to digital format with exceptional speed and accuracy.

High speed scanning

State-of-the-art 3-line CMOS contact image sensor technology allows the DR-6010C remarkably accurate image replication at an exceptional speed, equally fast with color and black-and-white – 60 pages per minute and 120 images per minute (A4/LTR, 200 dpi, portrait). Onboard JPEG compression also reduces the amount of time previously needed to transfer data to a PC.

Various document sizes

DR-6010C features a versatile dual paper path that allows easy processing of a diversity of document types. The default U-turn path is designed for handling pages of standard, A4/LTR-size thickness, while the straight paper path can process thick items – even plastic ID cards. Also, the scanner can be switched from automatic to manual sheet feeding to accommodate non-standard paper types, including multi-sheet forms printed on carbonless (NCR) paper.

Two paper paths

Ultrasonic double-feed detection

Double-feeds are caught with ultrasonic sensors that detect the gap between overlapping pages. The sheets are then halted from going through the scanner, allowing the double feed to be corrected.

Shading mechanism

To ensure consistent image quality, the DR-6010C performs an automatic calibration process called shading prior to each scan job. In an all-new mechanism that provides protection against dust, the image sensor shifts to calibrate itself against a special white shading surface that’s affixed directly on the sensor glass.

Functions

Advanced Scanner Functions

The most intricate of image details can be captured with exquisite precision and clarity using DR-6010C’s advanced efficiency-optimizing image processing functions and 600 dpi high optical resolution.

Auto Color Detection

DR-6010C is equipped with Auto Color Detection to detect, during the scanning of documents in a mixed batch, whether or not a page contains color. Black-and-white images are scanned in black-and-white scanning mode, and color pages in color scanning mode. This eliminates the need to separate black-and-white and color documents prior to scanning while ensuring image files are kept smaller than if scanning the whole batch in color mode.

3-Dimensional Color Space Correction

The 3-Dimensional Color Correction helps the DR-6010C achieve unprecedented color accuracy, true to the original document, using an onboard color conversion chip to pinpoint the exact RGB coordinates.

Advanced image processing

This model offers a collection of invaluable image-processing functions that optimize your document’s readability and minimize the need for reprocessing.

  • Auto Page Size Detection, Deskew, Skip Blank Page, Text Orientation Recognition, Color Dropout (R/G/B Custom), Moire Reduction, Prevent Bleed-Through / Remove Background, Punch Hole Removal, MultiStream, and MORE

Rapid Recovery System

While other scanners require the rescanning of an entire document in the event of a misfeed or paper jam, the DR-6010C is equipped with a Rapid Recovery System that stops for the repositioning of a misfed document so that scanning may resume from where it left off.

One-touch Job buttons

Frequently-used scanning functions, such as Scan to E-mail, can be programmed for speedy, one-touch execution. Three customizable Job buttons on the scanner’s face can be easily assigned for such routine jobs using the included Job Registration Tool.

Specifications
Type Desktop sheet-fed scanner
Document feeding Standard, Automatic or Panel feeding
Document size Width: 53 – 219 mm (2.08 – 8.6 in.)
Length: 70 – 356 mm (2.76 – 14 in.); Long Document Mode: up to 1,000 mm (39.3 in.)
Document thickness
and weight
U-Turn Path Automatic feeding: 0.06 – 0.15 mm, 52 – 128 g/m2 (14 – 32 lb bond)
Manual Feeding: 0.05 – 0.2 mm, 42 – 157 g/m2 (11 – 40 lb bond)
Straight Path Automatic feeding: 0.06 – 0.15 mm, 52 – 128 g/m2 (14 – 32 lb bond)
Manual Feeding: 0.05 – 0.66 mm, 42 – 546 g/m2 (11 – 144 lb bond)
Business card size and thickness Size: 53.9 x 85.5 mm (2.12 x 3.37 in.)
Thickness: 0.76 ± 0.08 mm (0.03 ± 0.003 in.)
Feeding capacity 10 mm stack or 100 sheets of 80 g/m2 (20 lb bond)
Scanning element 3-line CMOS CIS
Light source LED (red, green, and blue)
Scanning side Simplex/Duplex/Skip Blank Page/Folio mode
Scanning modes Black and White, Error Diffusion, High-Speed Text Enhancement, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level Grayscale, 24-bit Color, Auto Color Detection
Scanning resolutions 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed*
(A4/LTR, Portrait)
B&W 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
Grayscale 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
Color 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 84 ipm (Duplex)
Interface Hi-Speed USB 2.0
Scanner driver ISIS/TWAIN
Useful functions Job Function, Folio, Ultrasonic Double-Feed Detection, Rapid Recovery System, Moire Reduction, Prevent Bleed Through / Remove Background, Punch Hole Removal, Color Dropout, Auto Page Size Detection, Text Orientation Recognition, Skip Blank Page, Deskew, M
Power requirements AC 100V(50/60Hz), AC 120V(60Hz), AC220-240V(50/60Hz)
Power consumption 100V: 33W(Scanning), 2.7W(Sleep mode)
120V: 33W(Scanning), 2.7W(Sleep mode)
200V: 30W(Scanning), 2.2W(Sleep mode)
Operating environment 10 – 32.5°C (50 – 90.5°F), Humidity: 20 – 80% RH
Dimensions (W x D x H) Feed trays closed: 318 x 278 x 185.5 mm (12.5 x 10.9 x 7.3 in.)
Weight Approx. 6.5 kg (14.3 lb.)
Options/Consumables Barcode Module, Exchange Roller Kit
* Actual scanning speed may vary depending on your system configuration and PC.
* Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.

DR-M1060

DR-M1060

The imageFORMULA DR-M1060, ultra-compact A3 scanner offering reliable and versatile performance. A versatile and ultra-compact A3 scanner with a U-turn and selectable straight-through paper path. The DR-M1060 is perfect for reliably scanning various document types up to A3 size, while keeping footprint low.

Features

The Canon imageFORMULA DR-M1060 departmental scanner is a compact scanner equipped with a U-turn path, and is the smallest scanner in its class. It is capable of scanning A3 documents despite its desktop-scanner size, making it a cost-effective answer to your diverse scanning needs.

Comfortable and versatile

Despite its compact desktop-scanner size, the DR-M1060 is capable of scanning A3 documents. Its unique U-turn path design allows documents to be fed and ejected from the front of the scanner for convenient and efficient front-side only scanning operations.
The U-turn path can be switched to a straight path for plastic cards, thick paper, and other types of documents that cannot be bent, expanding the variety of media that can be scanned.

High performance for high productivity

The DR-M1060 scanner offers a collection of invaluable image capturing and processing functions for various document types that optimize readability and minimize reprocessing.
The scanner is also equipped with advanced error detection functions that not only allow smooth recovery from errors, but also prevent damage to documents by quickly detecting abnormal document movement.
All these features are designed to optimize workflows and improve productivity, delivering a reliable, efficient, and streamlined solution to all your document digitization needs.

Selectable U-turn and straight path options

Innovative space-saving design

High-speed scanning

Simplex (ppm) Duplex (ipm)
B&W Color B&W Color
A4 / landscape 60 60 120 120
A4 / portrait 40 40 80 80
A3 30 30 60 60
* A4, 200dpi

Support for a wide variety of media formats

Reliable feeding performance

The DR-M1060 is the first in the DR-series to be equipped with paper speed and skew sensors adjacent to the rollers.
These sensors monitor the paper speed and skew angle as the document moves during scanning, enabling the unit to stop the document feeder immediately a problem is detected and to prevent damage to the document.

User-friendly operating panel

The operating panel for basic operations, such as starting and stopping scans, is located on the front right of the scanner. The panel includes a DFR button to allow smooth recovery from feed stops that occur due to double feed. Up to nine jobs can be registered by connecting to the bundled CaptureOnTouch software.

Functions

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

Bundled Software

CapturePerfect and CaptureOnTouch are both capture application software for the DR scanner series.
Each of the software can be selected and used, depending on the usage and workflow.
Please refer to the “Software” page for details.

Kofax VirtualReScan Basic

Kofax VirtualReScan BasicThe leading image processing software, Kofax VRS Basic, improves readability for multi-size documents of varying degrees of quality. Automatically straighten skewed pages without character degradation, optimize a document’s brightness and contrast levels, and eliminate background noise and speckling.

Specifications
Type Desktop sheet-fed scanner
Document size Plain paper Width: 50.8 mm to 300 mm (2″ to 11.8″)
Length: 70 mm to 432 mm (2.8″ to 17″)
(You can scan documents up to 3,000 mm (118.1″) long by setting the scanner to the Long Document mode.)
Business card Width: 50.8 mm to 55 mm (2″ to 2.2″)
Length: 85 mm to 91 mm (3.4″ to 3.6″)
Card 54 mm x 86 mm (2.2″ x 3.4″) (ISO standard)
Document thickness and weight Plain paper U-turn path (page separation): 27 to 128 g/m² (0.04 mm to 0.15 mm)
U-turn path (non separation): 27 to 164 g/m² (0.04 mm to 0.2 mm)
Straight path: 27 to 255 g/m² (0.04 mm to 0.3 mm)
Business card 128 to 380 g/m² (0.15 mm to 0.45 mm)
(Use the straight path and place vertically.)
Card 0.76 mm (0.03″) or less, 1.4 mm (0.055″) or less for the embossment
(Use the straight path and place vertically.)
Scanning sensor CIS
Light source LED ( Red, Green, Blue )
Scanning side Simplex/Duplex
Scanning modes Black and White, Error Diffusion, 256-level Grayscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Color
Scanning resolution 100 x 100dpi / 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi
Scanning speed
( A4 horizontal document size )
B&W / Grayscale 200dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300dpi: 60 ppm (Simplex), 120 ipm (Duplex)
Color 200dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300dpi: 40 ppm (Simplex), 80 ipm (Duplex)
ADF capacity
( 80 g/m² paper )
A4: 60 sheets
A3: 25 sheets
Interface Hi-Speed USB 2.0
Driver / Software ISIS/ TWAIN Driver, CaptureOnTouch, CapturePerfect, eCopy PDF Pro Office, KOFAX VRS
Other functions Prescan, Staple detection, Addon, Double feed detection ignore
Dimensions
( W x D x H )
When trays are closed
424 mm (16.7″) × 246 mm (9.7″) × 120 mm (4.7″)
When trays are opened
424 mm (16.7″) × 440 mm (17.3″) × 210 mm (8.3″)
Weight
( without AC adapter )
Approximately 6.1 kg (13.5 lb)
Power supply
( using AC adapter )
DC24V 1.3A
Power consumption Scanning 32.5 W or less
In the sleep mode 2.5 W or less
With power switch OFF 0.5 W or less
Noise Not more than 56 dB
Operating environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 20% to 80% RH
Options / Consumables Exchange Roller Kit, Barcode module, 2D code module, Flatbed Scanner Unit 101/201
* Actual scanning speed may vary depending on your system configuration and PC.
* Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.


DR-6030C

DR-6030C

Canon's imageFORMULA DR-6030C departmental scanner blends high speeds and reliable document handling with versatility and convenience. The DR-6030C scanner provides comprehensive functionality in a desktop design that effectively delivers document capture benefits in any business application.

Features

High Speed & High Image Quality

Super-fast scanning

The DR-6030C employs an advanced 3-line CMOS CIS sensor to achieve ultra-fast color scanning at 60 pages per minute. Double-sided documents can be scanned just as quickly at 120 images per minute. And with the Hardware JPEG Transfer option, image data can be compressed when being transferred from the scanner to your PC for reduced transfer time for even higher output potential.

Superb image clarity and color

The versatile DR-6030C doesn’t compromise on image quality with an output resolution up to 600 dpi for clear, high-quality scanning in black and white (binary), 256-level grayscale, or 24-bit color. Canon’s 3-Dimensional Color Correction function faithfully reproduces a document’s color information using a built-in conversion circuit to pinpoint the exact RGB color coordinates. The result is unprecedented color reproduction and accuracy. And greater accuracy means better readability for both people and OCR scanning applications.

Reliable Paper Handling

The DR-6030C features Canon’s renowned high-precision roller system to deliver smooth, jam-free feeding of a wide variety of document weights and sizes from business card size up to 118.1 inches (3,000 mm) in Long Document mode.

Straight Path feeding

Scan plastic cards with Straight Path

Scan thick documents, business cards, and even plastic cards thanks to Straight Path feeding, which allows documents to be scanned and ejected in a straight path to the back of the scanner.

Skew Detection

If a large document enters the scanner at an angle, Skew Detection temporarily stops feeding to prevent the document from tearing or jamming.

Ultrasonic Double Feed Detection

The scanner features ultrasonic sensors that can detect the gap of air between overlapping pages to prevent multiple documents from being fed through at the same time. This feature prevents lost images and ensures that every page of even large batches of documents is scanned.

Rapid Recovery System

If scanning is interrupted due to a misfeed, the Rapid Recovery System allows you to reposition your document on the feed tray and seamlessly continue scanning right where it left off. Because incomplete image data is not transferred to your PC, you won’t ever have to delete incomplete data yourself or rescan an entire batch of documents.

Functions



Advanced Scanner Functions

The most intricate of image details can be captured with exquisite precision and clarity using DR-6030C’s advanced efficiency-optimizing image processing functions and 600 dpi high optical resolution.

Auto Color Detection

DR-6030C is equipped with Auto Color Detection to detect, during the scanning of documents in a mixed batch, whether or not a page contains color. Black-and-white images are scanned in black-and-white scanning mode, and color pages in color scanning mode. This eliminates the need to separate black-and-white and color documents prior to scanning while ensuring image files are kept smaller than if scanning the whole batch in color mode.

3-Dimensional Color Space Correction

The 3-Dimensional Color Correction helps the DR-6030C achieve unprecedented color accuracy, true to the original document, using an onboard color conversion chip to pinpoint the exact RGB coordinates.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

CapturePerfect is a capture application software for the DR scanner series.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheetfed scanner
Document feeding Automatic or manual sheet feeding
Document size Width: 53 – 300 mm (2 – 11.8 in.)
Length: 70 – 3,000 mm (2.75 – 118.1 in.)
Document thickness and weight U-Turn path Automatic feeding: 0.06- 0.15 mm, 52-128 g/m2 (14-32 lb bond)
Manual feeding: 0.05-0.2 mm, 42-157 g/m2 (11-40 lb bond)
Straight path Automatic feeding: 0.06-0.15 mm, 52-128 g/m2 (14-32 lb bond)
Manual feeding: 0.05-0.66 mm, 42-546 g/m2 (11-144 lb bond)
Business card size and thickness Size: 53.9 x 85.5 mm (2.12 x 3.36 in.)
Thickness: 0.76±0.08 mm (0.03±0.003 in.) or less
Feeding capacity 10 mm stack or 100 sheets of 80 g/m2 (20 lb bond)
Scanning element 3-line CMOS CIS
Light source LED (red, green, and blue)
Scanning side Simplex/Duplex
Scanning modes Black and White, Error Diffusion, High-Speed Text Enhancement, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level Grayscale, 24-bit Color
Scanning resolution 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi,
300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed
(A4/LTR, Portrait, 200 dpi)
Black and white 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex); 300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
256-level grayscale 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex); 300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
24-bit color 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex); 300 dpi: 60 ppm (Simplex), 80 ipm (Duplex)
Interface Hi-Speed USB 2.0
Scanner driver ISIS/TWAIN
Useful functions Ultrasonic Double Feed Detection, Continuous Mode, Moire Reduction, Prevent Bleed Through/Remove Background, Punch Hole Removal, Color Dropout, Auto Page Size Detection, Text Orientation Recognition, Skip Blank Page, Deskew, Auto Color Detection
Power requirement AC100 – 120V (50/60 Hz), AC220 – 240V (50/60 Hz)
Power consumption 46.5W or less (Energy Saving Mode: 3.7W or less)
Operating environment 10 – 32.5°C (50 – 90.5°F), Humidity: 20 – 80% RH
Dimensions (W x D x H) Feed trays closed: 398.4 x 312 x 191.4 mm (15.6 x 12.3 x 7.5 in.)
Weight Approx. 10.5 kg (23 lb.)
Options / Consumables Barcode Module, Exchange Roller Kit
* Actual scanning speed may vary depending on your system configuration and PC.
* Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Kofax, the Kofax logo, and other Kofax marks are registered trademarks or trademarks of Kofax, Inc. in the United States and other countries, and used under authority from Kofax.

DR-G2140 / G2110/ G2090

DR-G2140 / G2110/ G2090

Presenting the new Canon imageFORMULA DR-G2140/G2110/G2090 – fast, precise A3 production scanners capable of high-volume output with enhanced processing speed and reliability for unparalleled performance.

Features

Improving Productivity

The DR-G2140/G2110/G2090 scanners offer accelerated batch processing. They feature improved productivity of document conversions by shortening the time needed for scanning and processing, with the DR-G2140 capable of delivering 145 pages of high-speed scanning per minute*. In addition, the modified roller material has increased its durability from the one for previous scanner models.

*Landscape A4 sized sheets at 200 dpi in color/B&W.

Smooth and Reliable

Integral to Canon’s highly reliable, stable feeding mechanism, the advanced and unique Ultrasonic Double-Feed Detection and Rapid Recovery features deliver smooth document scanning. A solid-body design, heavy-duty feed and eject trays, and staple detection capability are just some of the features that ensure minimal downtime and help to maintain business continuity.

Engineered for speedy document scanning

*A4 sized sheets at 200dpi

B&W
SPEED
COLOR
SPEED
AUTOMATIC
DOCUMENT FEEDER
DR-G2140
Portrat 110 ppm 110 ppm 500 sheets
Landscape 145 ppm 145 ppm
DR-G2110
Portrat 90 ppm 90 ppm 500 sheets
Landscape 120 ppm 120 ppm
DR-G2090
Portrat 75 ppm 75 ppm 300 sheets
Landscape 100 ppm 100 ppm

Various-sized document feeding

The DR-G2140/G2110/G2090 scanners deliver smooth, jam-free feeding of documents in mixed batches and non-standard documents ranging in size from business card size to A3 (11×17 in.)*. Active Torque Control adjusts roller torque to accommodate otherwise difficult-to-feed paper types, such as especially thin or thick documents. Three separation modes are available to enable scanning of thin or coated paper types that were previously difficult to feed.

* Up to A1 594 mm x 841 mm using Folio scanning method and Long Document Mode (maximum length of 5,588 mm)

Shading mechanism

To ensure consistent image quality, the DR-G2140/G2110/G2090 performs an automatic calibration process called shading prior to each scan job. In an all-new mechanism that provides protection against dust, the image sensor shifts to calibrate itself against a special white shading surface that’s affixed directly on the sensor glass.

3-line CMOS image sensor technology

3-line CMOS sensor technology is responsible for unmatched image sharpness and tonal accuracy. Processed images are scanned quickly and have exceptional color reproduction, true to the original document and free of unwanted color staining.

High volume feeder

Each scanner is equipped with a motorized paper feed tray that adjusts height position relative to volume. The DR-G2140/G2110 have a maximum capacity of 500 sheets. (The DR-G2090 supports up to 300 sheets.)

Network scanning via wired LAN connection

Share a single scanner via a network to perform scanning tasks efficiently.
Select any connected computer from the scanner’s operation panel and perform scanning.
Scanning can also be executed from any computer sharing the scanner via the network.
You can save scanned data to specified storage locations, attach scanned data to emails for
sending, and perform various scanning operations according to the scan settings configured on each computer.

Functions

Simple, Clear Scanning

During document conversion, high image accuracy and quality are important to minimize error rates, achieve regulatory compliance, and increase the ease of document integration and retrieval. The DR-G2140/G2110/G2090 scanners offer a collection of invaluable image capturing and processing functions for various types of documents that optimize readability and minimize reprocessing.

Enhanced Efficiency

Centralized scanning solutions – operated by a limited number of dedicated and trained individuals – enable companies to spend less time processing, retrieving, and searching for paper documents and can help facilitate collaboration throughout the organization. The DR-G2140/G2110/G2090 scanners are equipped with an easy-to-use Control Panel and Job Key as well as a Document Feed Tray that adjusts to the height of the paper batch. All these features are designed to deliver unattended batch scanning for optimizing workflows and improving productivity.

Ultrasonic double feed detection

For extra protection against double feeds, this DR series is equipped with an ultrasonic sensor that can detect the gap between overlapping pages and prevent them from going through the scanner at the same time.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

New Binarization – ActiveThreshold

The DR-G2140/G2110/G2090 has new binary processing function, which realizes the texts reproduction & decreasing noise from dirty paper

Equipped with new CIS and DR processor

High-speed scanning is achieved via the adoption of a new CIS with maximum speeds of up to 140 sheets / 280 faces per minute. The DR processor makes high-speed, high-quality image-processing possible.

Steple detection

Canon’s Staple Detection feature automatically halts the scanning process if an unremoved staple is found, as staples can cause scanning errors that compromise the document or damage the machine.

Intuitive control panel featuring Job Key

Start and stop scanning, check display messages, and make selections using the scanner’s control panel. The button configuration is ergonomically designed to make job execution an easy endeavor. For example, the Job Key allows the operator to select from up to 99 preregistered scan jobs. Jobs are assigned using the included Job Registration Tool.

Manual Feed mode

Manual Feed mode allows you the option of manually loading sheets of a document for processing.

Bundled Software

CaptureOnTouch is a capture application software for the DR scanner series.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheet-fed scanner
Document feeding Automatic or manual sheet feeding
Document size Width: 50.8 – 305 mm (2.0 – 12.0 in.)
Length: 70 – 432 mm (2.8 – 17.0 in.)
Long Document Mode DR-G2140 DR-G2110 DR-G2090
Up to 5,588 mm (220 in.) Up to 3,000 mm (118.1 in.)
Document thickness and weight Continuous Feeding: 20 – 209 g/m², 0.04 – 0.25 mm (5 – 56 lb bond)
Non-Separation Mode: 20 – 255 g/m², 0.04 – 0.3 mm (5 – 64 lb bond)
Feeding capacity DR-G2140 DR-G2110 DR-G2090
48 mm stack or 500 sheets of 80 g/m² (20 lb bond) 300 sheets of 80 g/m² (20 lb bond)
Scanning element 3-line CMOS CIS
Light source LED (Red, Green, and Blue)
Scanning side Simplex/Duplex
Scanning modes Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, Active Threshold,
256-level Grayscale, 24-bit Color, Auto Color Detection, Long Document, Manual feeding, Separation Hi, Separation Low, Non Separation
Scanning resolutions 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed*
(A4, 200 dpi)
DR-G2140 DR-G2110 DR-G2090
B&W Portrait 110 ppm (Simplex)/220 ipm (Duplex) 90 ppm (Simplex)/180 ipm (Duplex) 75ppm (Simplex)/150ipm (Duplex)
Landscape 145 ppm (Simplex)/290 ipm (Duplex) 120 ppm (Simplex)/240 ipm (Duplex) 100ppm (Simplex)/200ipm (Duplex)
Grayscale Portrait 110 ppm (Simplex)/220 ipm (Duplex) 90 ppm (Simplex)/180 ipm (Duplex) 75ppm (Simplex)/150ipm (Duplex)
Landscape 145 ppm (Simplex)/290 ipm (Duplex) 120 ppm (Simplex)/240 ipm (Duplex) 100ppm (Simplex)/200ipm (Duplex)
Color Portrait 110 ppm (Simplex)/220 ipm (Duplex) 90 ppm (Simplex)/180 ipm (Duplex) 75ppm (Simplex)/150ipm (Duplex)
Landscape 145 ppm (Simplex)/290 ipm (Duplex) 120 ppm (Simplex)/240 ipm (Duplex) 100ppm (Simplex)/200ipm (Duplex)
Interface DR-G2140 DR-G2110 DR-G2090
USB3.1 Gen1, 10Base-T/100Base-Tx/1000Base-T USB3.1 Gen1
Scanner driver ISIS/TWAIN
Useful functions Job Function, Ultrasonic Double-Feed Detection, Staple Detection, Text Enhancement, Dropout and Color Enhancement, Auto Page Size Detection, 3-D Color Correction, Image Rotation, Skip Blank Page, Edge Emphasis, Moiré Removal, Prevent Bleed Through / Remove Background, Contrast Adjustment, Shading Correction, Brightness Adjustment, Deskew, Border Removal, Scanning Side Selection, Scan Area Settings, Addon Settings, Text Orientation Recognition, Punch Hole Removal, Folio Scan, Unnecessary dots removal, Notch removal, Background Smoothing, Character Emphasis, Count Only Mode, Verify Scan, Rapid Recovery System, MultiStreamTM
Power requirements AC 100V (50/60Hz), AC 120V (60Hz), AC220-240V (50/60Hz)
Power consumption 66.5W (Scanning), 3.5W (Sleep mode)
Operating environment 10 – 32.5°C (50 – 90.5°F), Humidity: 20 – 80% RH
Dimensions
(W x D x H)
Feed trays closed: 480 x 569 x 315 mm (18.9 x 22.4 x 12.4 in.)
Weight Approx. 25 kg (55.1 lb.)
Options/Consumables Imprinter Unit, Exchange Roller Kit, Separation Pad, Imprinter Ink Cartridges, Flatbed Scanner Units
*Scanning speed may vary depending on PC environment, scanner settings, and other factors.
Specifications are subject to change without notice.


DR-X10C

DR-X10C

DR-X10C can scan documents in color just as quickly as in black & white - at a fast 100 pages per minute. (200dpi, A4/LTR, Portrait) DR-X10C features many new functions such as 3-step dust prevention method for clean, clear images, Dedicated, onboard image processing chip. Double feed Retry mechanism, Dedicated sensor for document size and angle detection.

Features

Superb Canon Image Quality and Speed

The Canon DR-X10C delivers unrivaled image quality and scanning speed, plus diverse output formats such as searchable PDF in resolutions up to 600 dpi. Unique to the DR series is its selectable background – the color can be switched between white and black to suit particular document types and applications.

Rapid, high quality scanning

ppm & ipmImages can be continuously captured at a rate of 100 pages per minute or 200 images per minute in color, grayscale, or black-and-white (A4/LTR, 200 dpi, portrait). Onboard JPEG compression is available for larger files for reduced transfer time to your PC.

3-line CMOS image sensor technology

The scanner employs dual 3-line CMOS contact image sensors for unrivalled document scanning speed, image sharpness, and tonal accuracy. Resulting images are true to the original document – free of unwanted color staining that affects conventional scanners.

3-step dust prevention method for clean, clear images

The DR-X10C combats paper dust with a revolutionary 3-step approach that prevents particles from accumulating and adhering on the sensor glass. This dust-free scanning system ensures that images are clear of artifacts while greatly minimizing the need for manual cleaning.

Dedicated, onboard image processing chip

The scanner maintains its high scanning speed even with multiple image processing functions selected thanks to hardware image processing. Functions are processed by the onboard chip rather than the connected PC for minimal speed deterioration.

Tough, durable construction

The robust DR-X10C features a solid body and durable roller system to handle the demands of production-level scanning. Its daily duty cycle is rated at 60,000 sheets per day. The motorized paper feed tray can be set to one of three height positions according to the volume of a typical batch, which helps minimize the wait time before scanning begins. Each position accommodates up to approximately 100, 300, and 500 sheets, respectively.

Functions

Superior Paper Handling and Reliability

The 500-sheet capacity DR-X10C features Canon’s renowned high-precision roller system and page separation mechanism for reliable batch scanning in a variety of automatic and manual feeding modes. Multiple functions and built-in sensors ensure efficient, reliable handling and capture, plus strong protection against double feeds.

3 ultrasonic double feed sensors, with “multi-zoning” capability

Three ultrasonic sensors provide protection against double feeds by detecting and preventing overlapping pages from being fed into the scanner at the same time. Each sensor can be set to ignore or detect specified areas of a document to accommodate pages with labels or attachments.

All-new Double Feed Retry mechanism

In the rare event that a double feed occurs, the Double Feed Retry function returns the document pages to the feeder inlet and retries scanning up to three times before pausing document transport, dramatically reducing the need for operator intervention.

Dedicated sensor for document size and angle detection

While conventional scanners rely on their image sensor to detect a document’s size and angle, the DR-X10C is equipped with a dedicated sensor for this purpose to provide exceptional Page Size Detection and Deskew accuracy and processing speed.

Staple detection sensors

Canon’s Staple Detection feature automatically halts the scanning process when an unremoved staple is detected. Left undetected, staples could cause errors that compromise the document, cause jams, or damage the device.

Intuitive control panel and Job key

Start and stop scanning, select preregistered scan jobs, check displayed messages, and make select scanner settings using the control panel on the machine. Job functionality enables the operator to select and execute up to 99 preregistered scan jobs directly from the DR-X10C control panel without having to use a scanning application.

Various functions to improve scanning efficiencies and qualities

Wide range of intelligent image processing functions are equipped.
Please refer to the “Image processing functions” page for details.

CapturePerfect is a capture application software for the DR scanner series.
Please refer to the “Software” page for details.

Specifications
Type Desktop sheetfed scanner
Document feeding Automatic or manual sheet feeding
Document size Width: 50.8 – 305 mm (2 – 12.01 in.)
Length: 70 – 432 mm (2.76 – 17.01 in.)
Document thickness and weight Automatic feeding: 0.06 – 0.15 mm, 52 – 128 g/m2 (14 – 32 lb bond)
Manual feeding: 0.05 – 0.30 mm, 42 – 255 g/m2 (11 – 64 lb bond)
Feeding capacity Up to 500 sheets of good quality paper (48 mm or less including page curl)
Scanning element 3-line CMOS CIS
Light source LED (red, green, and blue)
Scanning side Simplex / Duplex
Scanning modes Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II
256-level Grayscale
24-bit Color
Scanning resolutions 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed*(A4/LTR, 200 dpi) Portrait Black and White: 100 ppm (Simplex) / 200 ipm (Duplex)
Grayscale: 100 ppm (Simplex) / 200 ipm (Duplex)
Color: 100 ppm (Simplex) / 200 ipm (Duplex)
Landscape Black and White: 128 ppm (Simplex) / 256 ipm (Duplex)
Grayscale: 128 ppm (Simplex) / 256 ipm (Duplex)
Color: 128 ppm (Simplex) / 256 ipm (Duplex)
Useful functions Job Function, Ultrasonic Double Feed Detection, Staple Detection, Selectable Background Color, Dust Countermeasures, Auto USB Power Switching, Auto Color Detection, Moire´ Reduction, Prevent Bleed Through / Remove Background, User Registration, Skip Blank Page, Auto Page Size Detection, Deskew, Batch Separation, Text Orientation Recognition, Black Border Removal, Punch Hole Removal, Folio, Long Document Mode, Color Dropout / Enhancement (R/G/B/Custom), MultiStream™
Interface Dual Interface (SCSI-3 & High-Speed USB2.0)
Software ISIS/TWAIN Driver, Job Registration Tool, CapturePerfect 3.0
Power requirements AC 100V (50/60Hz), AC 120V (60Hz), AC 220-240V (50/60Hz)
Power consumption Scanning: 125W, Sleep mode: 4.2W (AC 220-240V: 4.5W), Power Turned Off: 0W
Operating environment 10 – 32.5°C (50 -90.5°F), Humidity: 20 – 80% RH
Dimensions (W x D x H) 528 x 563 x 375 mm (20.79 x 22.17 x 14.77 in.), with trays closed
Weight Approx. 39 kg (86 lb.)
Options Pre-Imprinter Unit, Post-Imprinter Unit, Patch Code Decoder, Barcode Module III
Consumables Exchange Roller Kit (Feed roller, Retard roller, Pick roller), Cleaning Sheets (30), Ink Cartridges for Imprinter (blue, red, or green)
* Maximum hardware speed. Actual scanning speed may vary depending on data transfer time and your system configuration.
Specifications are subject to change without notice.
Canon and the Canon logo are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries.
imageFORMULA is a trademark of CANON ELECTRONICS INC.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and other countries.
Other product and company names herein may be the trademarks of their respective owners.
Adobe, the Adobe logo, Acrobat, the Adobe PDF logo, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
